Targo Vent WX Plus heavy-duty façade membrane for open-jointed cladding, 1.5 m × 50 m (75 m² roll), with self-adhesive overlap zone
Targo Vent WX Plus heavy-duty façade membrane for open-jointed cladding, 1.5 m × 50 m (75 m² roll), with self-adhesive overlap zone
Targo Vent WX Plus heavy-duty façade membrane for open-jointed cladding, 1.5 m × 50 m (75 m² roll), with self-adhesive overlap zone
wishlist lista de deseos

Targo Vent WX Plus heavy-duty façade membrane for open-jointed cladding, 1.5 m × 50 m (75 m² roll), with self-adhesive overlap zone

El tiempo de entrega:
ca 1-3 days ca 1-3 days (entrega internacional)
mejores Ofertas
1 Pcs.
siempre 312,00 EUR (4,16 EUR por)
> 1 Pcs.
siempre 309,00 EUR (4,12 EUR por)
312,00 EUR
4,16 EUR por

incl. IVA 19%. excl. envío

recomendar
descripción

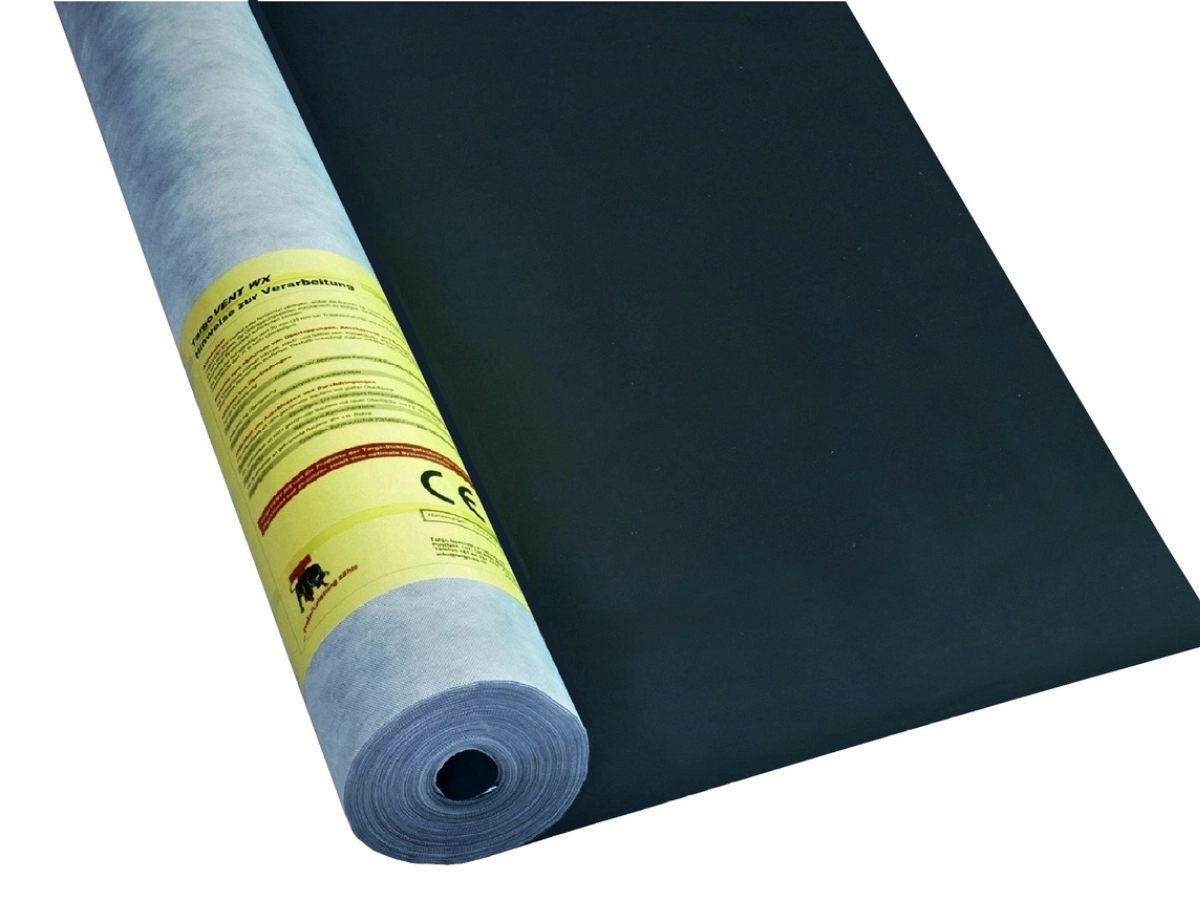

TargoVENT WX is a heavy-duty, vapour-permeable and tear-resistant wind barrier for façades with shadow gaps / open-jointed cladding

With a one-sided self-adhesive zone in the overlap area for concealed bonding.
The façade membrane is water-repellent and UV-stabilised – ideal. It is suitable as a wind barrier for façades with open joints. For open-jointed façades, the following applies: the maximum width of open joints is 40 mm (up to 50 mm for trapezoidal cladding). The proportion of open joints must not exceed 40%.


Installation notes

It is recommended to install the membrane horizontally. Make overlaps according to the marking line, at least 10 cm. Staple the lower sheet in the overlap area and secure the membrane after installation using the façade substructure.

Chemicals, oil-based products or wood preservatives may damage the membrane; avoid installation over coatings that have not fully dried. A ventilation cavity of at least 60 mm is recommended. Sealing/bonding (system recommendation):
For overlaps, connections, penetrations and nail penetrations, the matching products from the Targo adhesive system are recommended. Bond overlaps rainproof/windtight with TargoBENDIX UV; seal connections depending on the substrate (smooth: TargoBENDIX UV, rough: TargoFIX 1A). For porous substrates, pre-treat if necessary with TargoPRIMER M/S.


Advantages

  • Suitable for façades with shadow gaps/open-jointed cladding (larger permitted joints up to 40/50 mm)

  • Highly vapour-permeable (Sd value 0.02 m) – supports drying

  • Tear-resistant and robust – three-layer wind barrier

  • Water-repellent & UV-stabilised – ideal behind open-jointed façades

  • System warranty through the coordinated Targo adhesive system

  • Self-adhesive zone for concealed bonding in the overlap area



Technical data

  • Membrane structure: three-layer, vapour-permeable, water-repellent, UV-stabilised

  • Sd value: 0.02 m

  • Tensile strength: longitudinal 220 N/5 cm, transverse 180 N/5 cm

  • Tear propagation resistance: 110 N

  • Weather exposure: up to 3 months

  • Fire classification: B / 5.2 / RF2

  • Temperature resistance: –40 °C to +100 °C

  • Roll size: 1.5 m × 50 m

  • Roll weight: 16 kg


Data sheet PDF
Installation guide PDF
