Knauf Supafil® Cavity Wall – Glass Wool for Blown-In Cavity Wall Insulation Pallet 431,6 kg

Knauf Supafil® Cavity Wall – Blown-in Glass Wool Cavity Insulation, Pallet 431,6 kg

Knauf Insulation Supafil® Cavity Wall is a loose glass wool insulation without added binder, which is blown in using machine technology via hoses and nozzles as cavity insulation into the cavity of double-leaf masonry. The insulation is permanently water-repellent, resin-free and naturally non-combustible.

Properties & Benefits

• Specifically designed for blown-in insulation of double-leaf masonry (cavity insulation)

• WLS 035 at a bulk density of 30–40 kg/m³

• Hydrophobised throughout – permanently water-repellent (meets WS / WL(P))

• Non-combustible – building material class A1

• Settlement-proof: settlement class S1 (no measurable settlement < 1%)

• Solvent-free

Area of Application

For cavity insulation using machine technology into the cavity of double-leaf masonry.

Installation Notes

• Installed as blown-in insulation using suitable machine technology (blowing machine).

• Minimum cavity width: 40 mm.

Technical Data

• Design thermal conductivity: λ_B = 0.035 W/mK (DIN 4108-4)

• Declared thermal conductivity: λ_D = 0.034 W/(m·K) (DIN EN 12667)

• Reaction to fire: A1 (DIN EN 13501-1)

• Designation key: MW-EN 14064-1-S1-WS-MU1

• ETA: ETA-18/0707

• Bulk density: 30–40 kg/m³

• DGNB registration code: 5RD4XZ

Material Requirement (Guide Values)

Material requirement depends on the cavity depth. Guide values (at 30 kg/m³) per 100 m²:

• 40 mm: approx. 7 bags / 100 m²

• 100 mm: approx. 18 bags / 100 m²

• 140 mm: approx. 25 bags / 100 m²

• 200 mm: approx. 36 bags / 100 m²

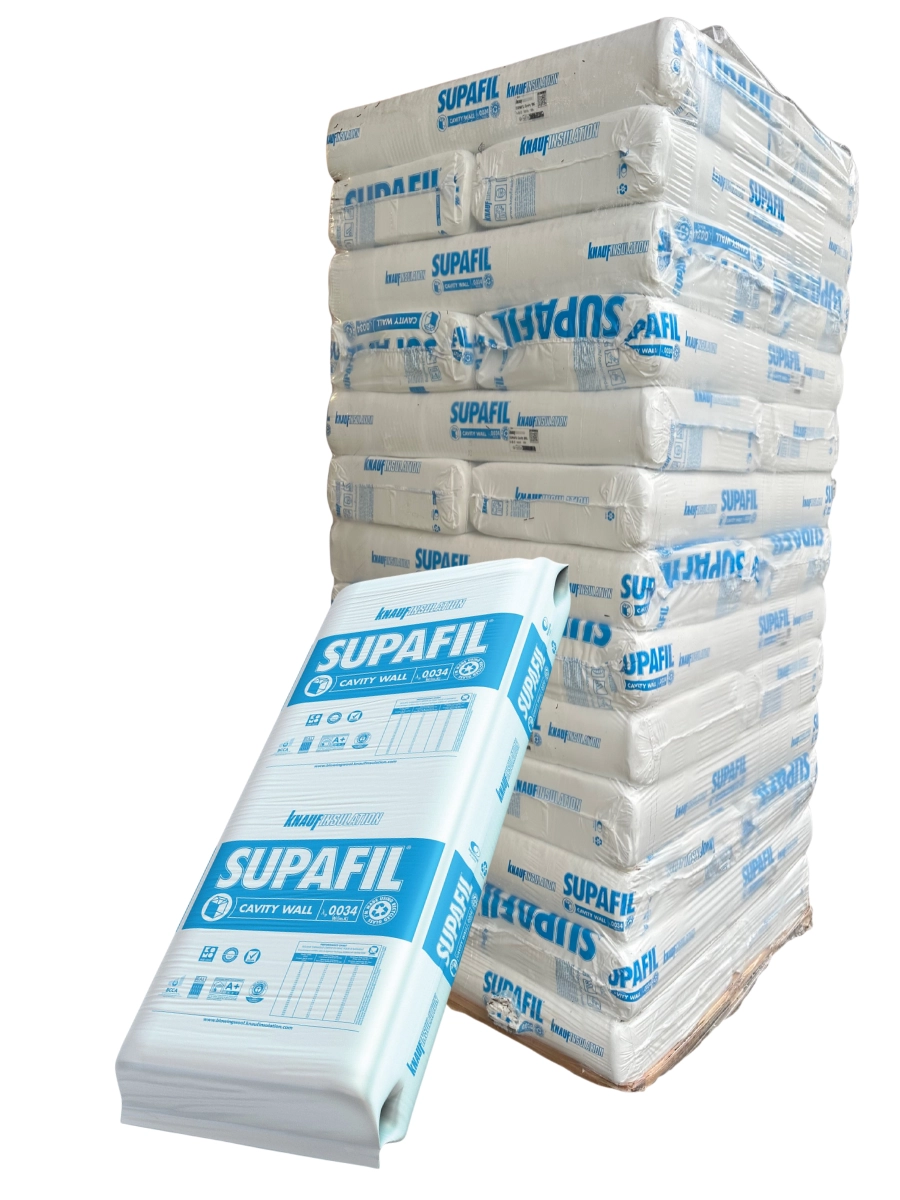

Packaging

• Bag: 16.6 kg
• Bags per pallet: 26
