Knauf ProtectFill – Blown-in Stone Wool Insulation for Fire Protection

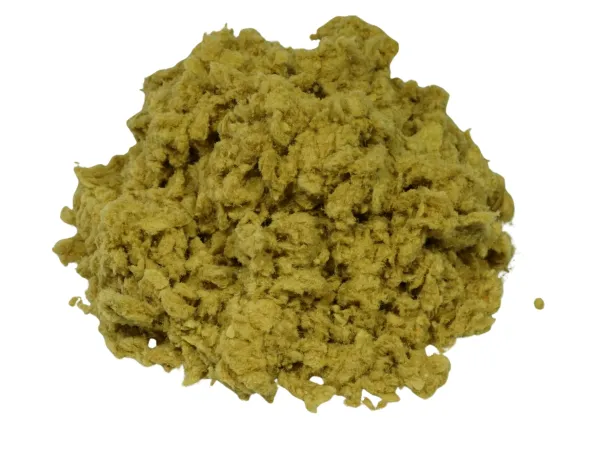

Knauf ProtectFill is a blown-in insulation made of loose stone wool for fire protection upgrading in service/installation shafts. The material is blown directly into the shafts by specialised contractors via hoses and nozzles – fast, clean and reliable. In addition to fire protection, ProtectFill also provides thermal and acoustic insulation.
Properties & Benefits
-
Fire protection: non-combustible, building material class A1
-
Fibre melting point: ≥ 1000 °C
-
No tendency to continuous smouldering
-
Thermal, acoustic and fire protection in one material
-
Settlement-proof: settlement class S1 (no measurable settlement < 1%)
-
Water-repellent: water absorption (WS) complies
-
Solvent-free
-
Ideal for new-build and refurbishment
Area of Application
For subsequent thermal and acoustic insulation as well as fire protection upgrading in service/installation shafts. Not load-bearing in compression.
Installation
-
Installed as blown-in insulation by qualified contractors using suitable machine technology (blowing machine).
-
Applied via hoses and nozzles directly into the service/installation shaft.
-
Installation according to the applicable installation guidelines and recognised rules of the trade.
Technical Data
-
Design thermal conductivity: λB = 0.040 W/(m·K) (DIN 4108-4)
-
Thermal conductivity class: WLS 040
-
Declared thermal conductivity: λD = 0.039 W/(m·K)
-
Reaction to fire: A1 (DIN EN 13501-1)
-
Designation key: MW-EN 14064-1-S1-WS-MU1
-
ETA: ETA-18/0706
-
Bulk density: 60 – 140 kg/m³
-
Water vapour diffusion resistance: μ = 1
Material Requirement (Guide Values)
Material requirement depends on the cavity depth. Guide values per 100 m² (at a bulk density of 70 kg/m³) are, for example:
-
100 mm: approx. 56 packs / 100 m²
-
200 mm: approx. 112 packs / 100 m²
-
300 mm: approx. 168 packs / 100 m²
-
400 mm: approx. 224 packs / 100 m²
Packaging

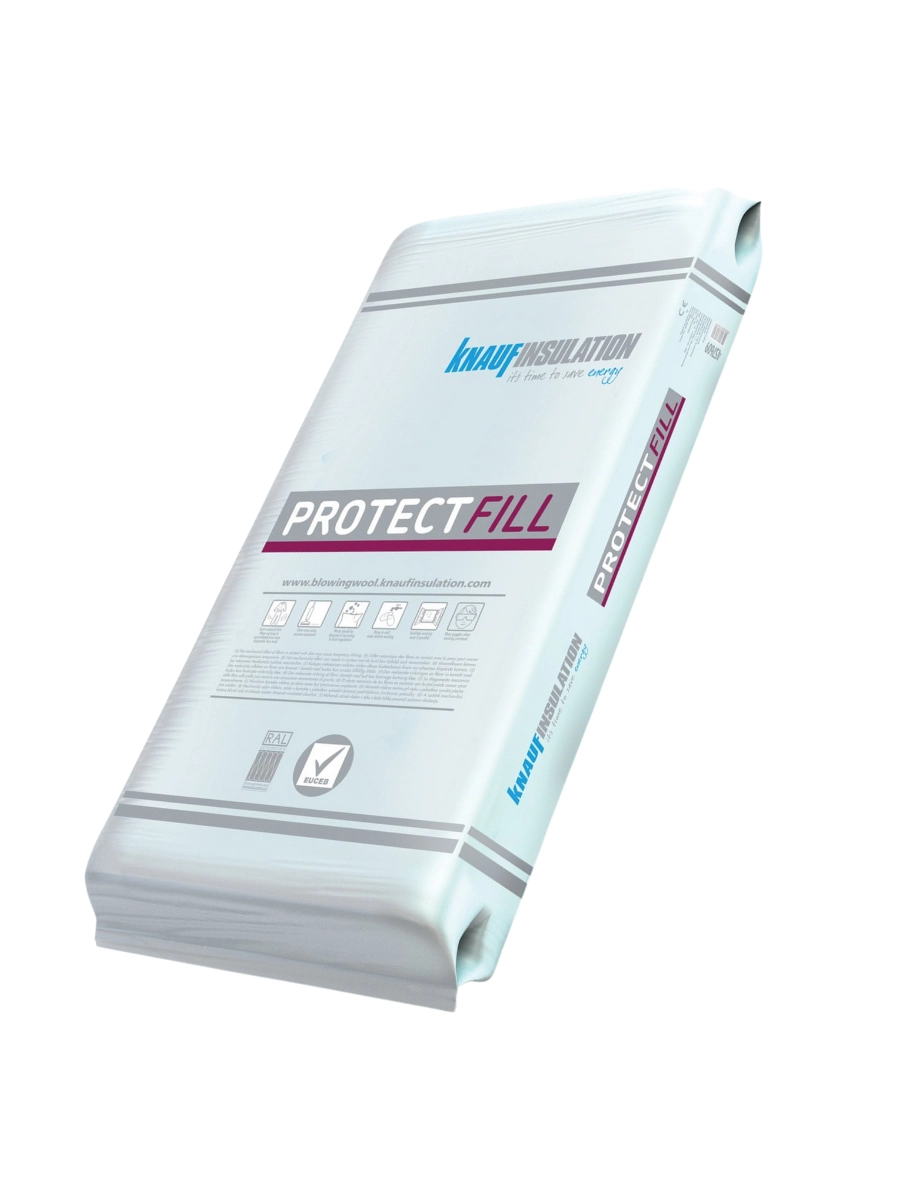

- Weight per pack: 12.5 kg
- Packs per pallet: 28

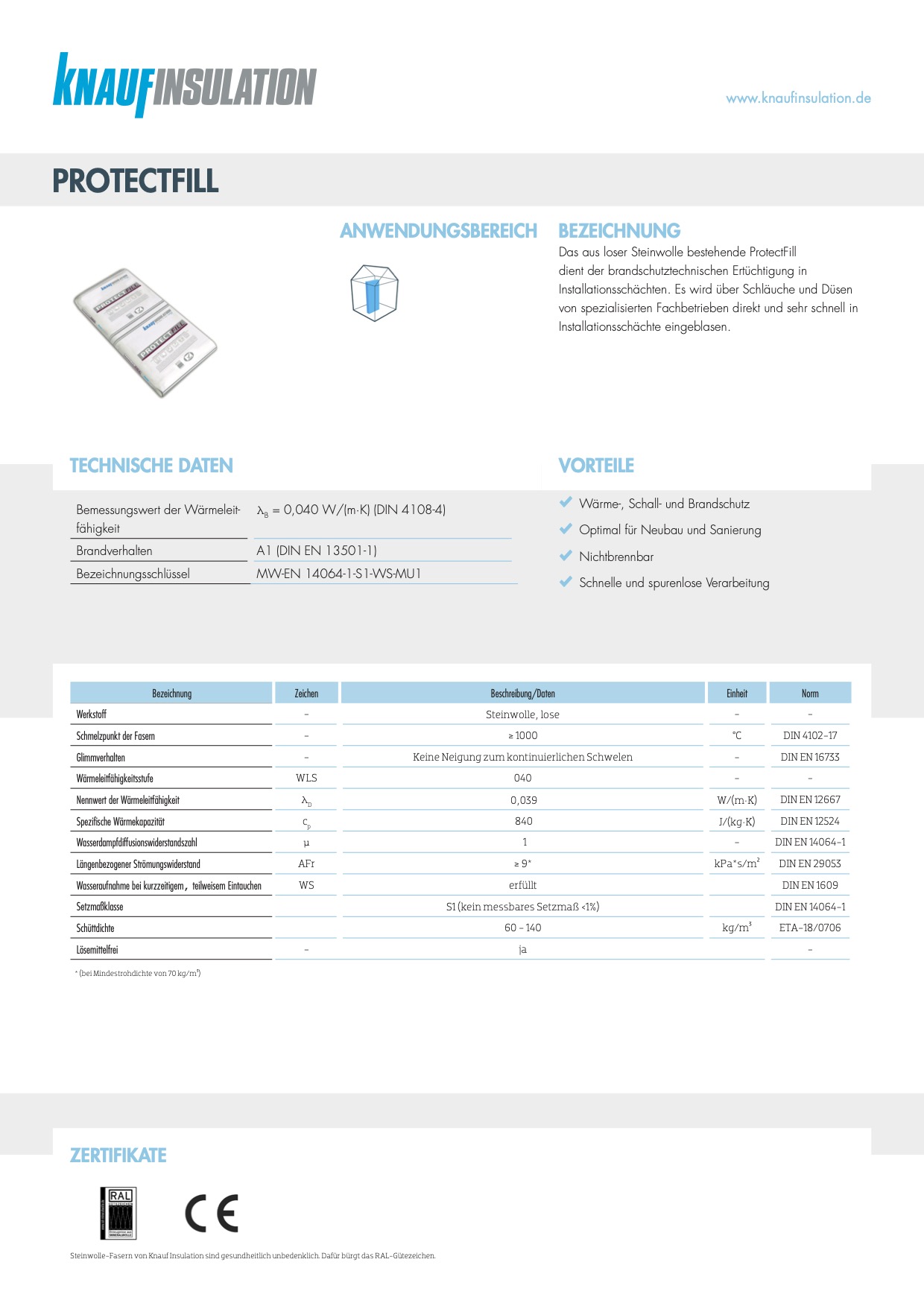

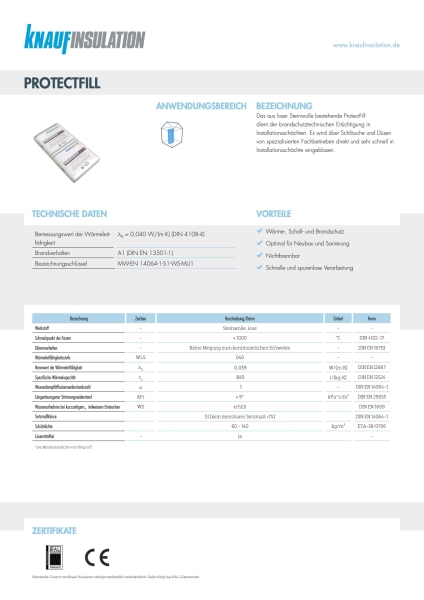

Data sheet PDF
